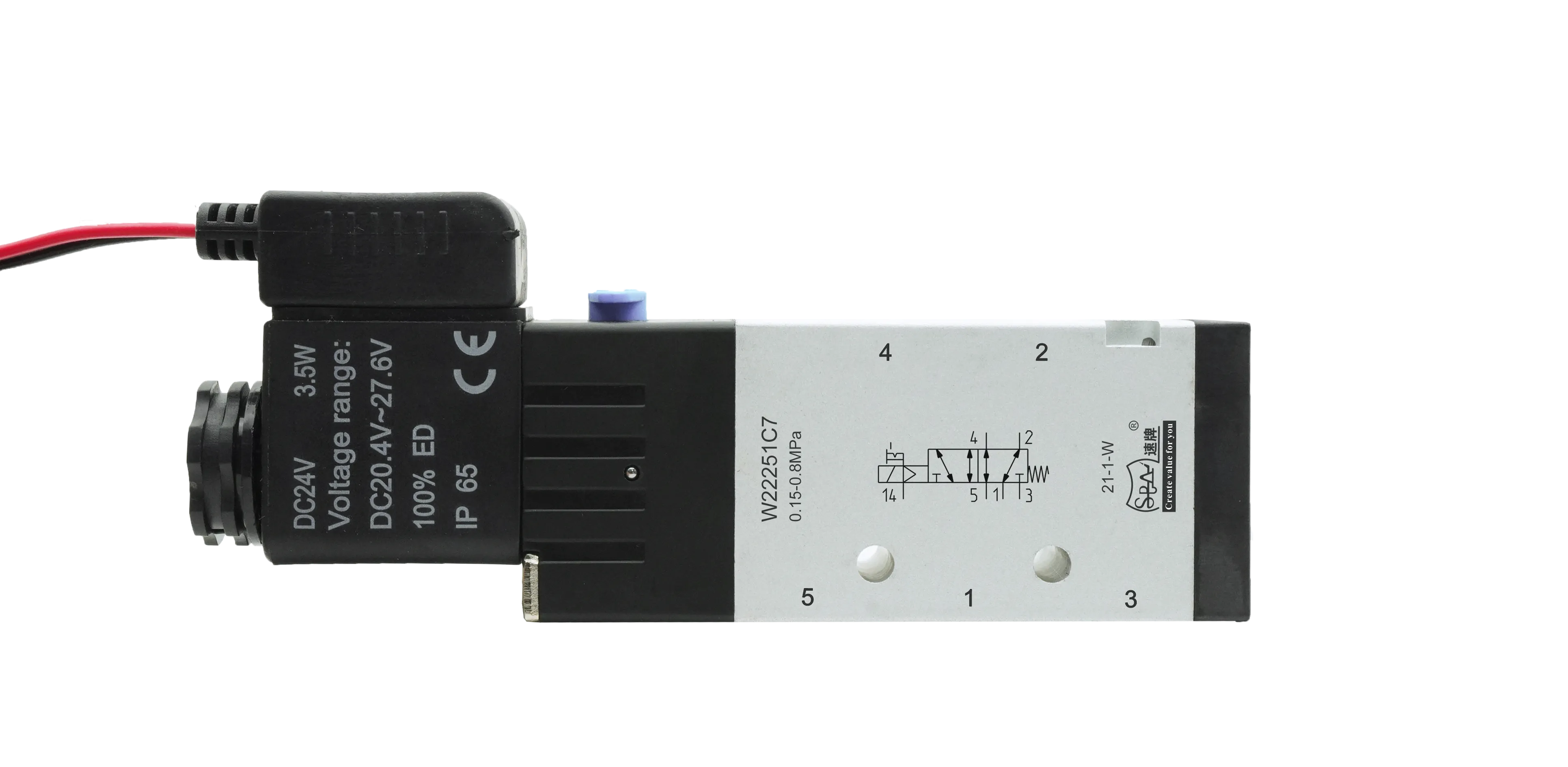

W series -22mm -5/2 single electric control
Functional Highlights:
1. Integrated dustproof and waterproof junction box
2. High-output electromagnetic components
3. Locking manual switch
4. Premium sealing with long-lasting lubrication
5. No external exhaust port design
6. Hybrid reset system (air and spring)
Number of positions
Two-way five-way
Operating pressure range
-101 kPa ~ 0.8 MPa
Switching methods
Response time
Specification
Connection method
Intake = Exhaust = PT1/8
Intake = Exhaust = PT1/4
Exhaust = PT1/8
Voltage (optional)
Protection level
Using fluid
flow
14.0mm2(Cv=0.78) / 12.0mm2(Cv=0.67)
16.0mm2(Cv=0.89) / 12.0mm2(Cv=0.67)
Temperature range

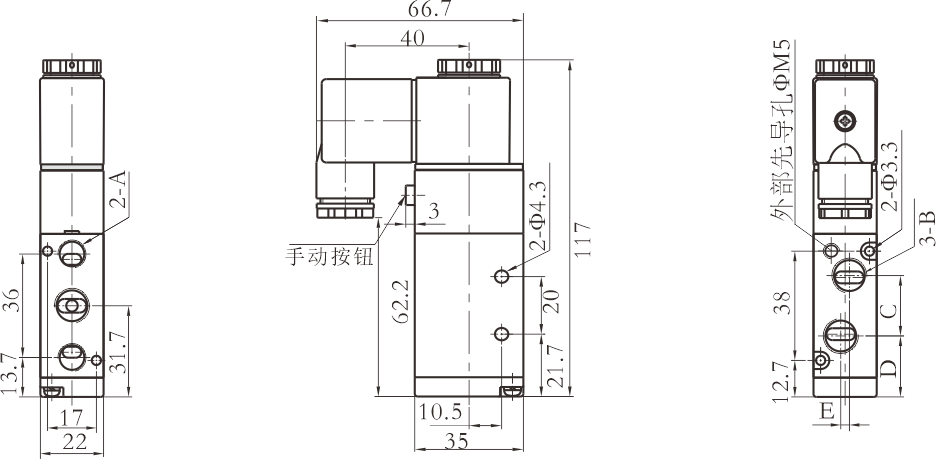

Product Selection
High-quality seals + lubricating oil
High-quality sealing rings
Special rubber seals (oil/water/abrasion resistant), combined with high-performance lubricating grease, reduce friction loss by 40%.
Customized return spring
The spring ensures a constant commutation force at low pressures, and the air pressure balances the pilot pressure, ensuring consistent reset across the entire pressure range.
High-output electromagnetic components
Strong magnetic circuit design ensures long-term stable response time.
Constant switching force eliminates the risk of jamming.
Specially customized spring wire, certified for millions of cycles, suitable for high-frequency, high-load operating conditions.
Long-lasting grease
Excellent extreme pressure wear resistance and scratch resistance
Excellent thermal stability and pitting resistance, with no gum or carbon buildup.
It exhibits excellent resistance to water washout, chemical inertness, and good compatibility with non-metallic and metallic materials such as plastics and rubber.
coil
Selected H-pole enameled wire for longer lifespan
integratedHigh-quality circuit boards offer more stable performance.
LED indicator lights clearly show the working status.
Multiple wiring options to meet different customer needs

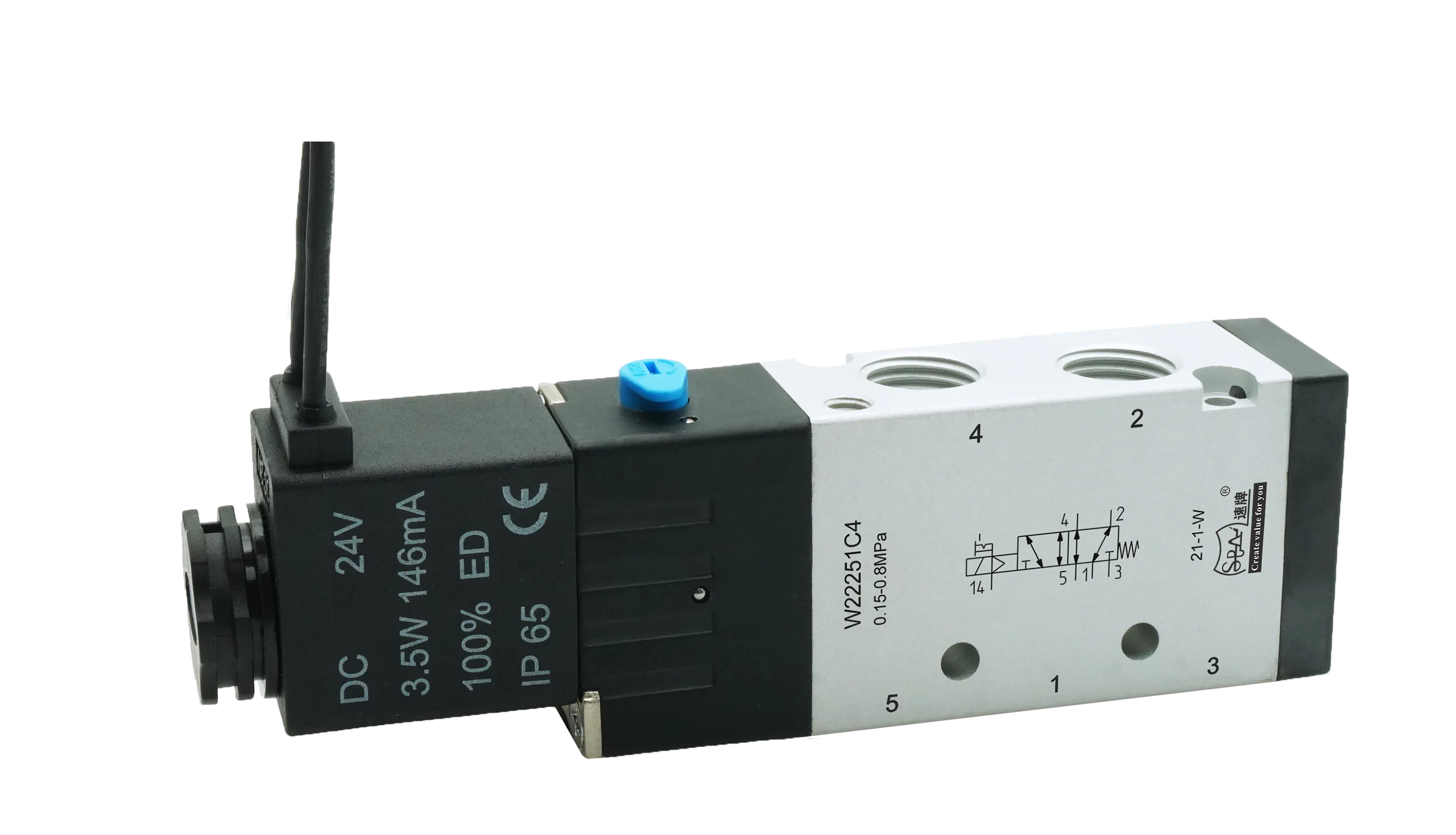

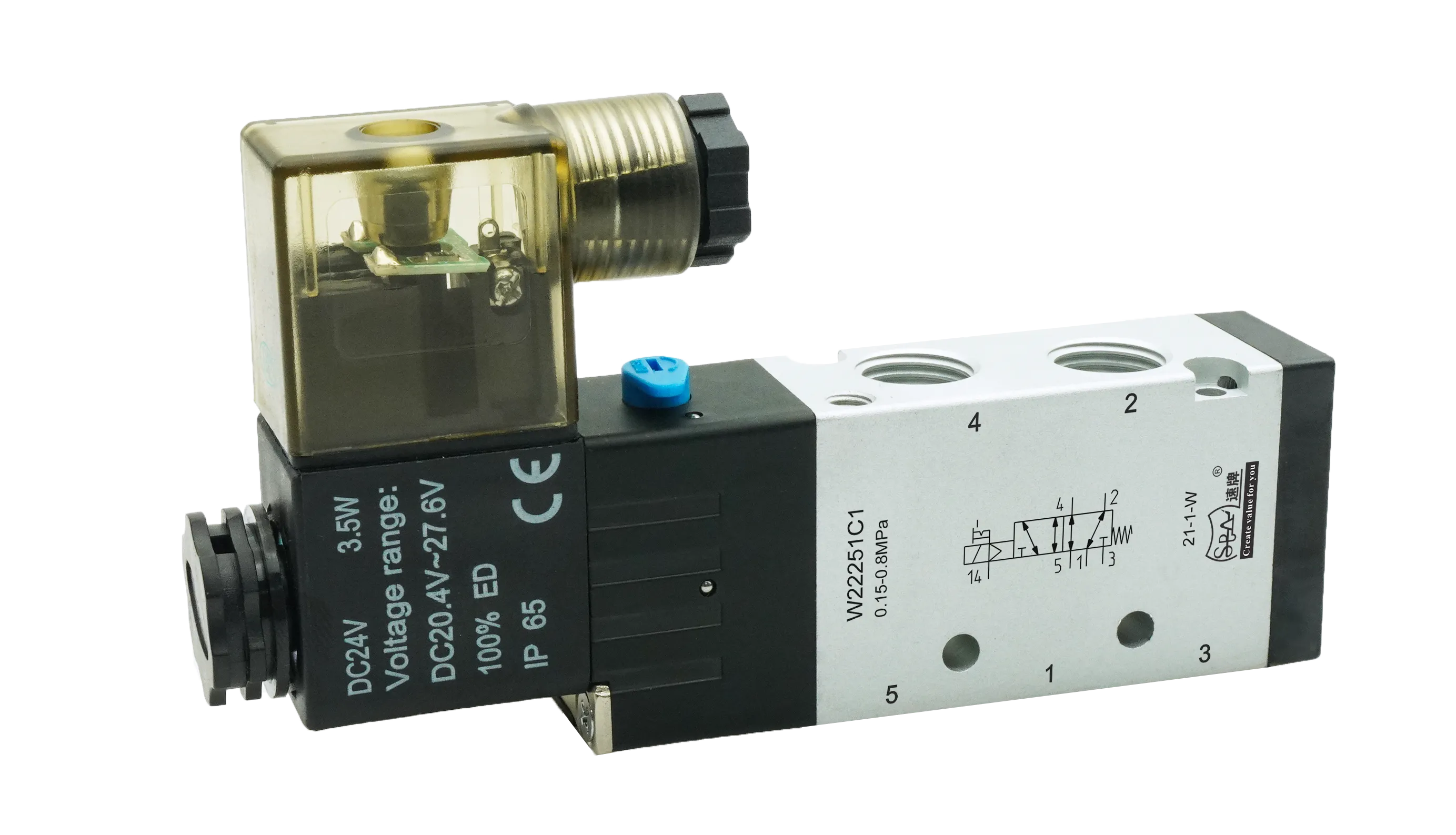

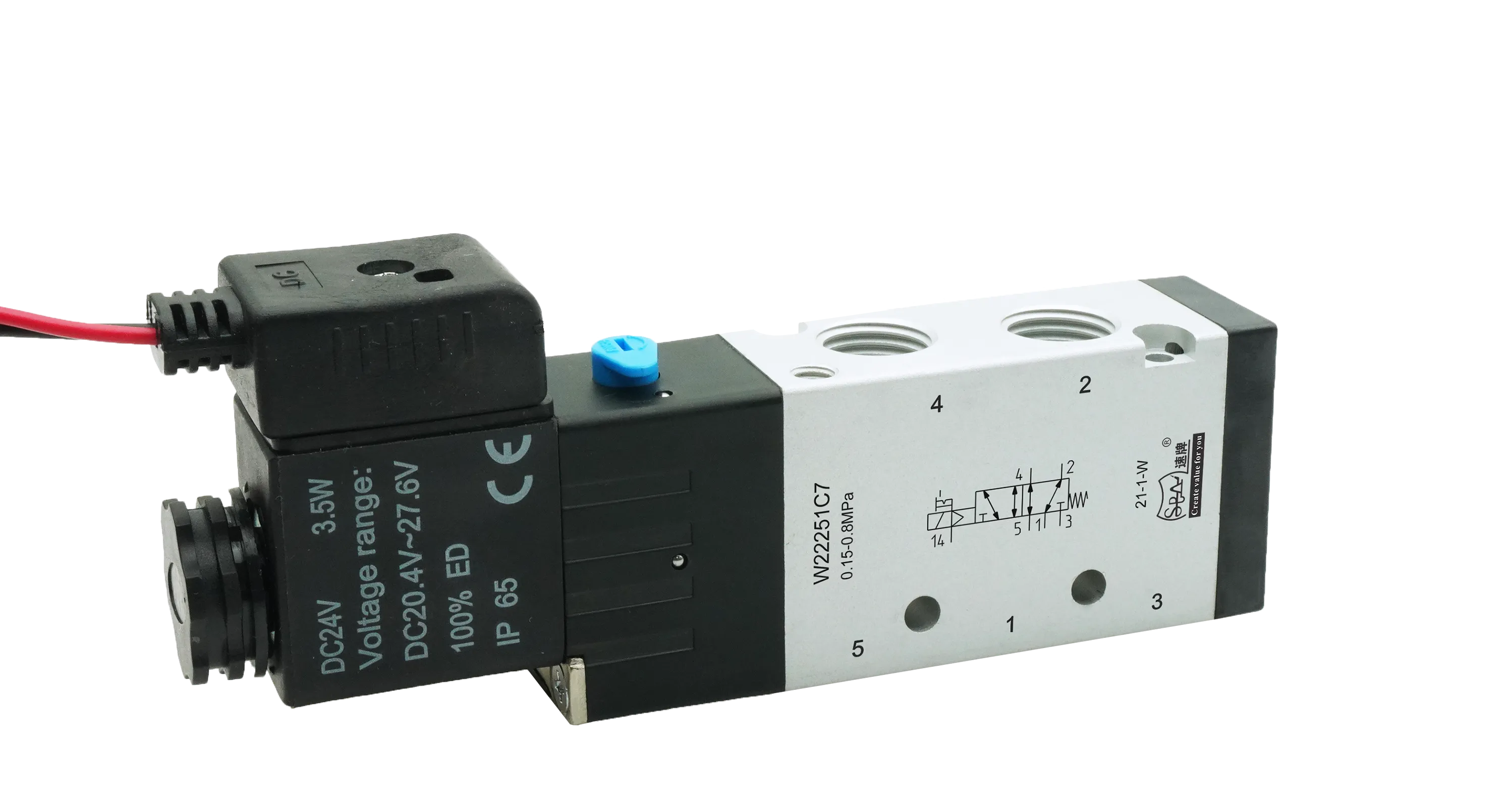

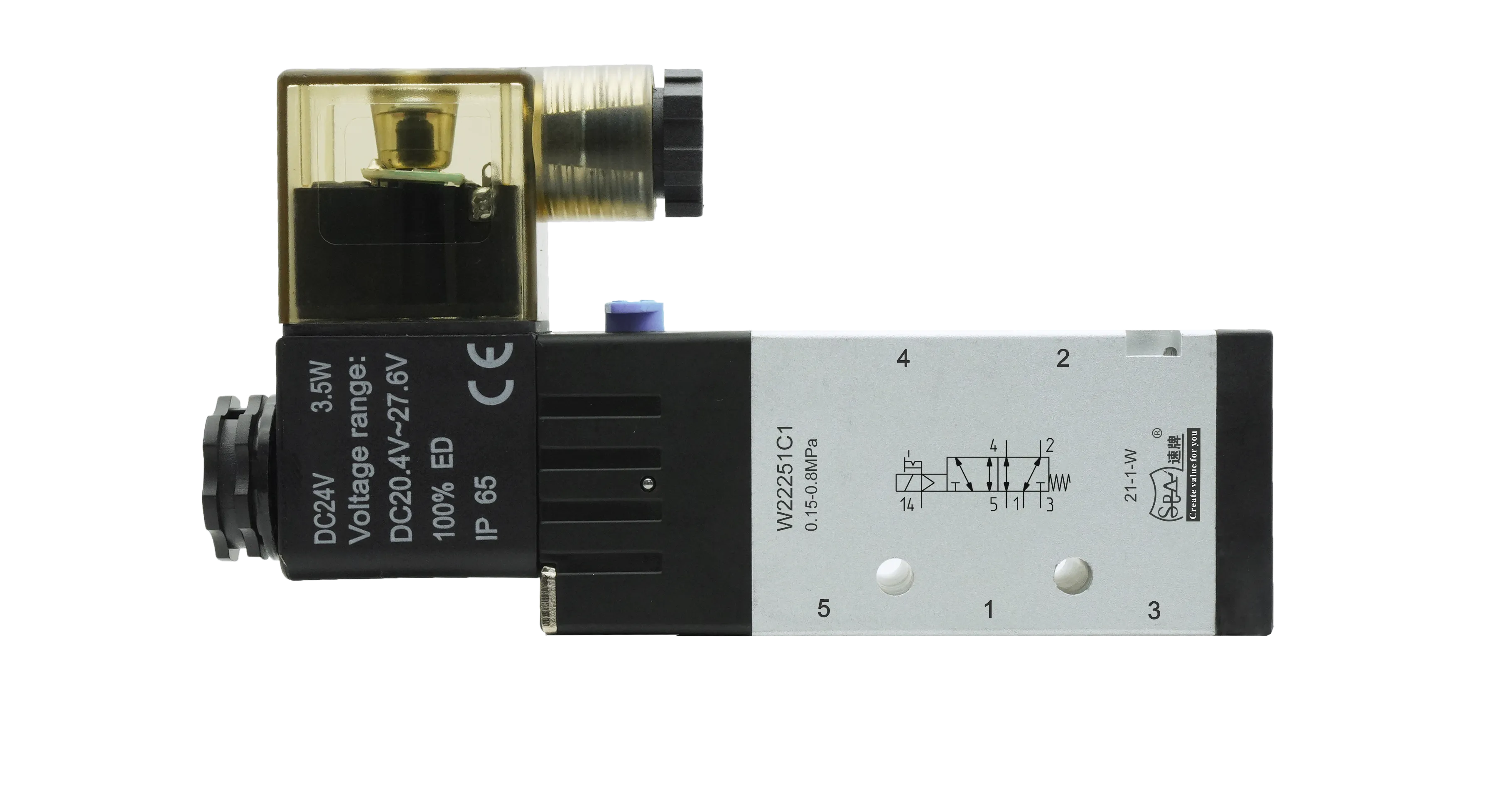

Standard terminal type

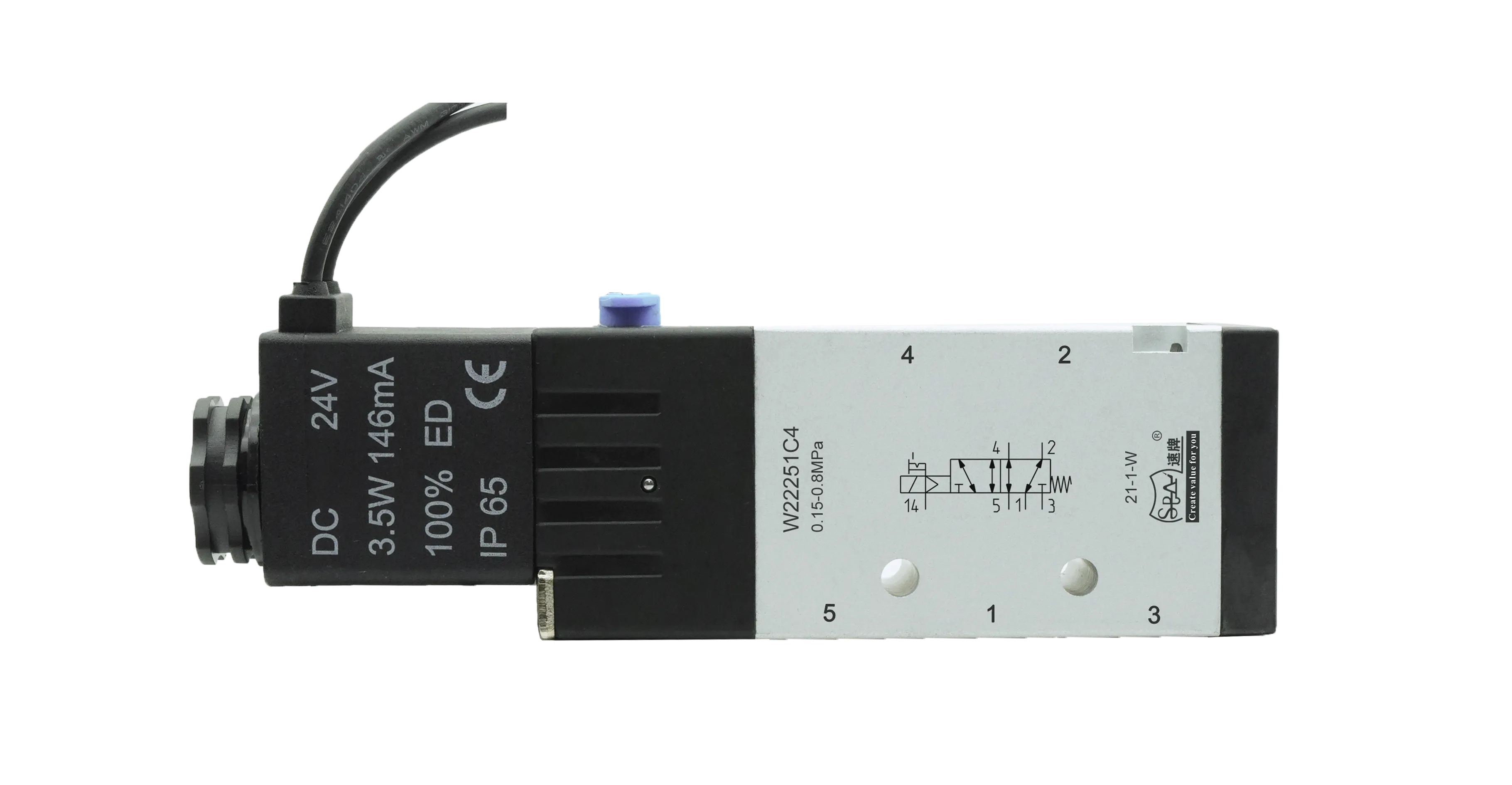

Direct cable output

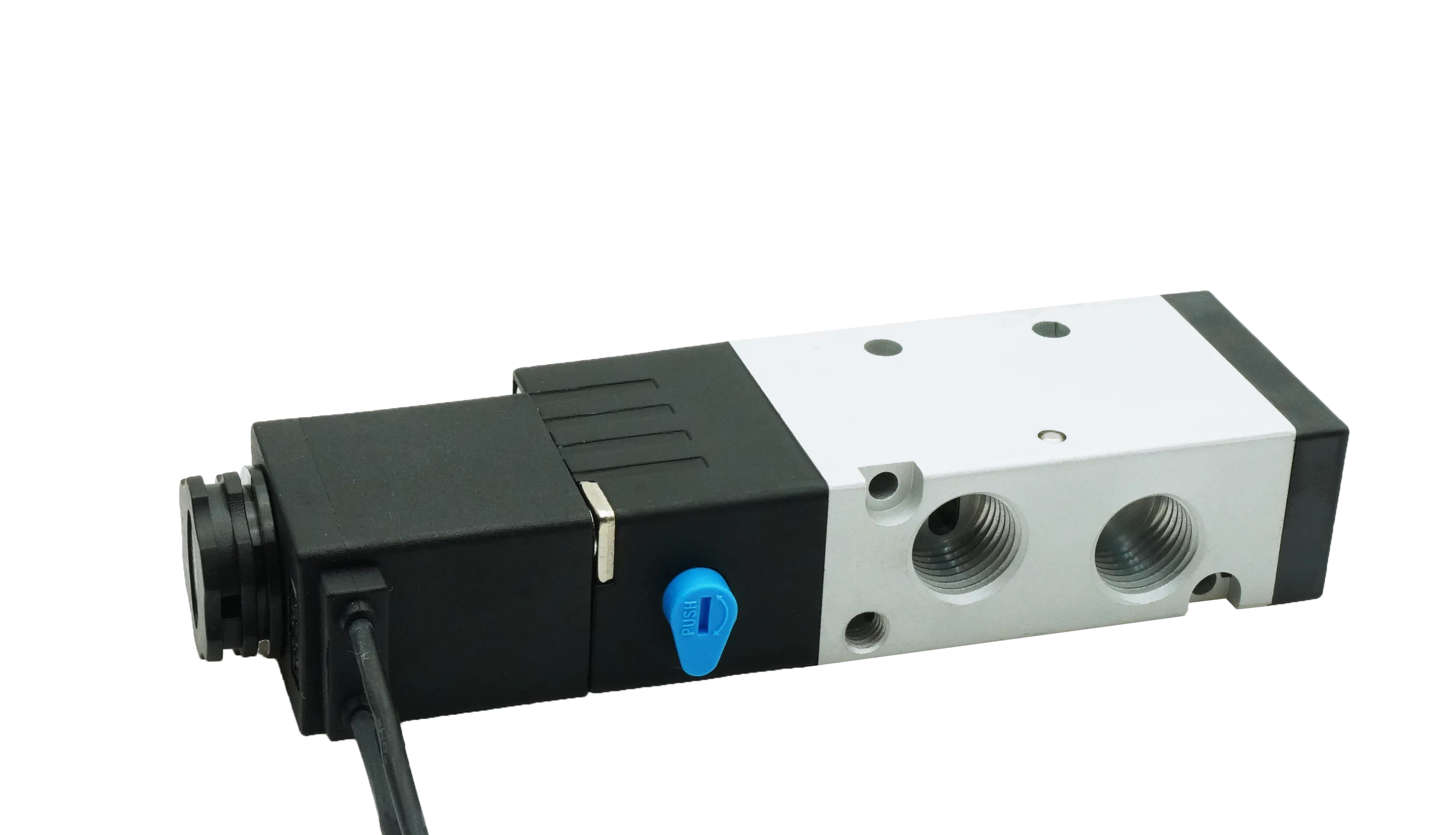

New cable-out type

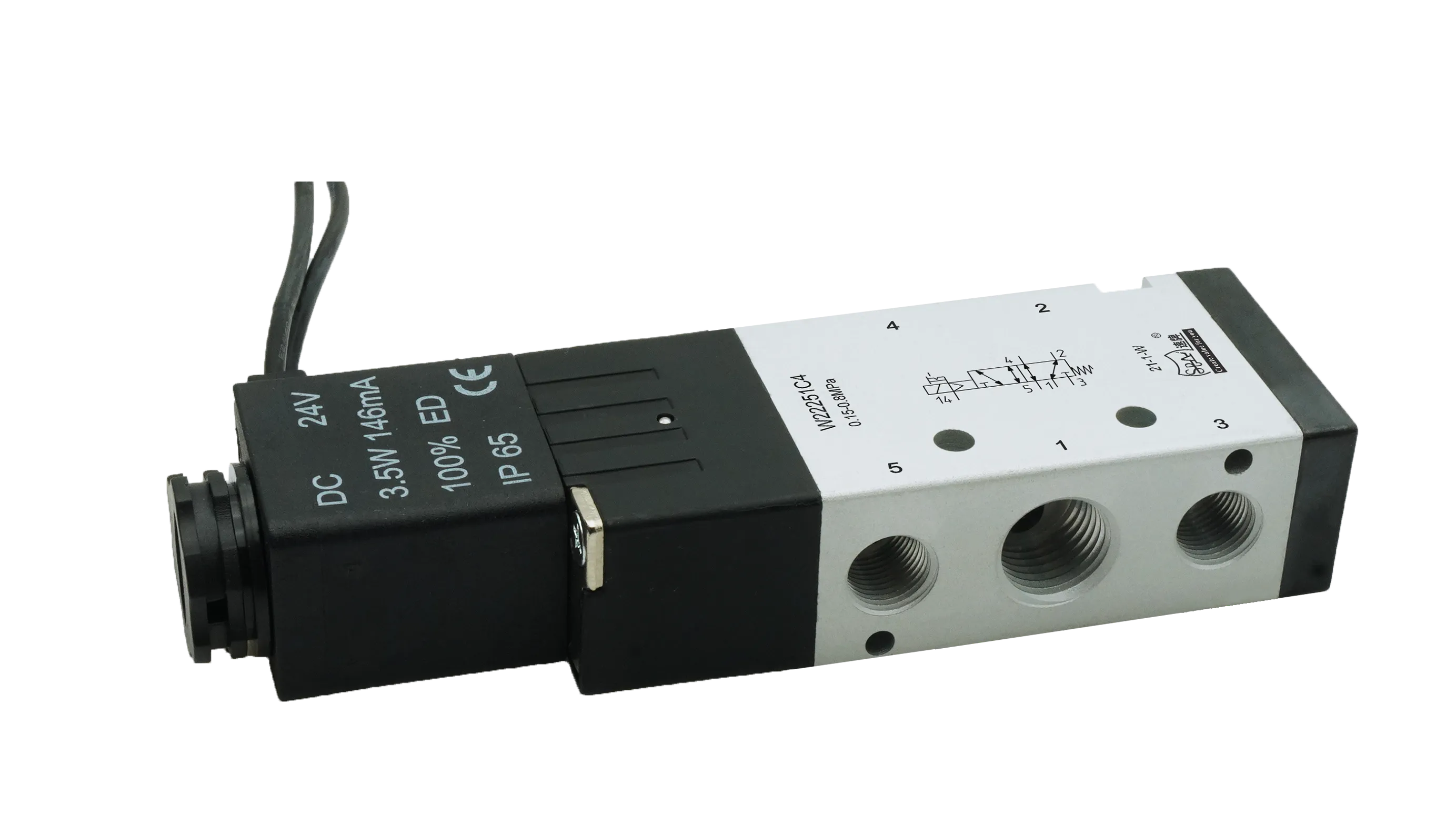

New cable-out type
No wiring required
Welding with plastic coating ensures stable resistance and strong contact; saves time and labor costs.
Dustproof and waterproof
One-piece plastic coating; uses Mitsubishi seals, providing excellent water resistance, airtightness, and oil resistance.
With indicator light
The working status is clear at a glance, faults have nowhere to hide, and maintenance is easy and efficient.
