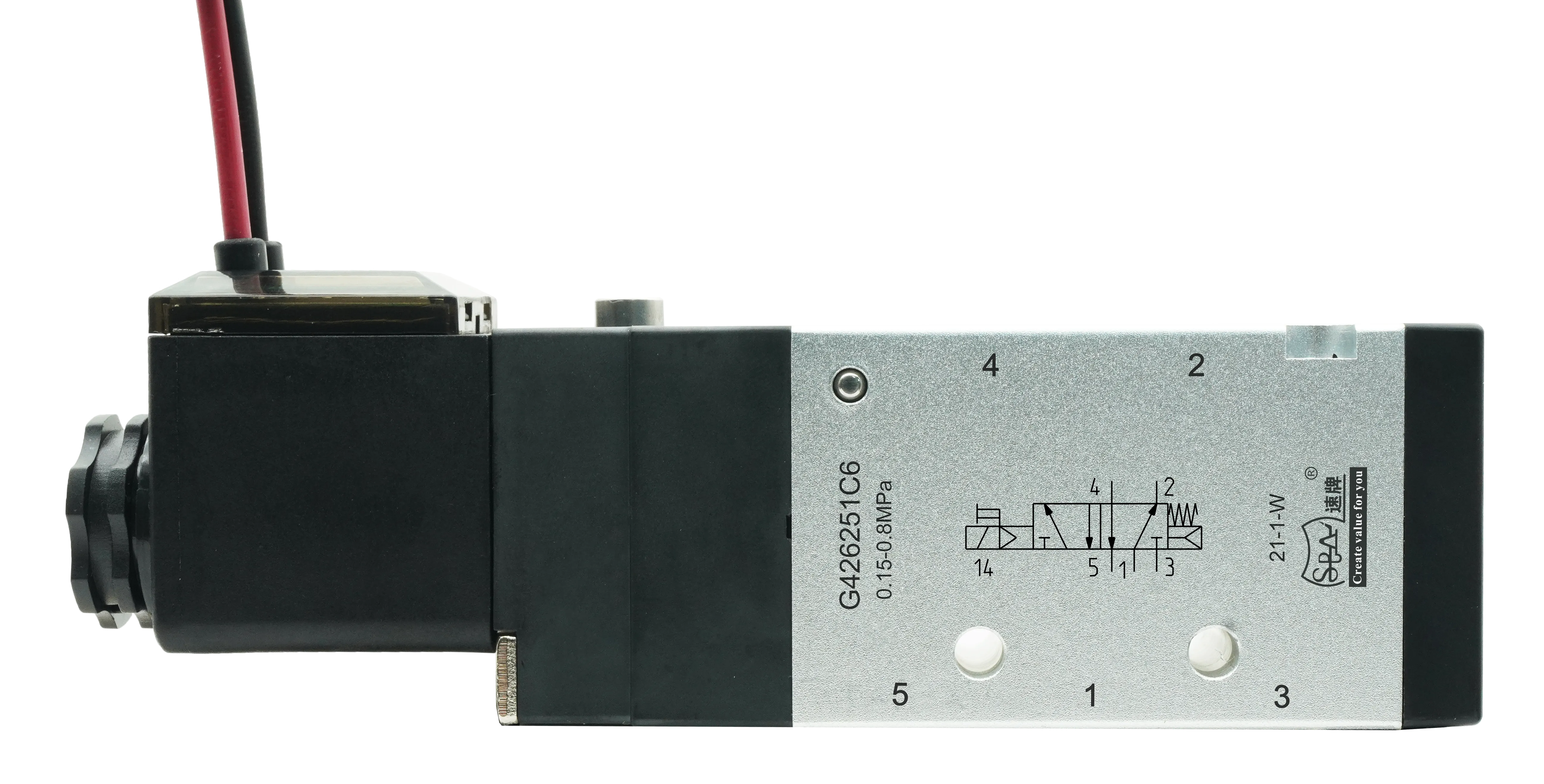

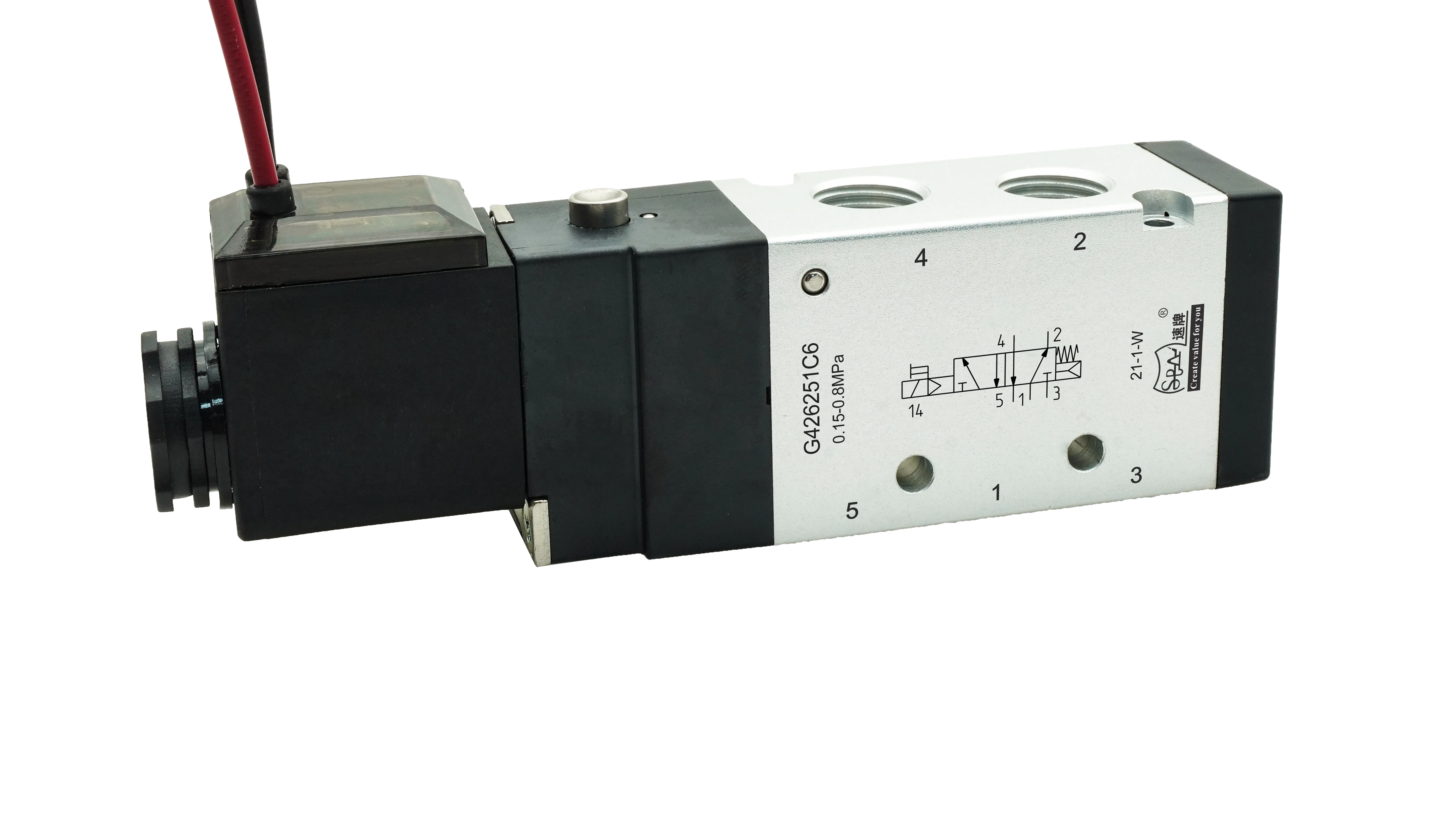

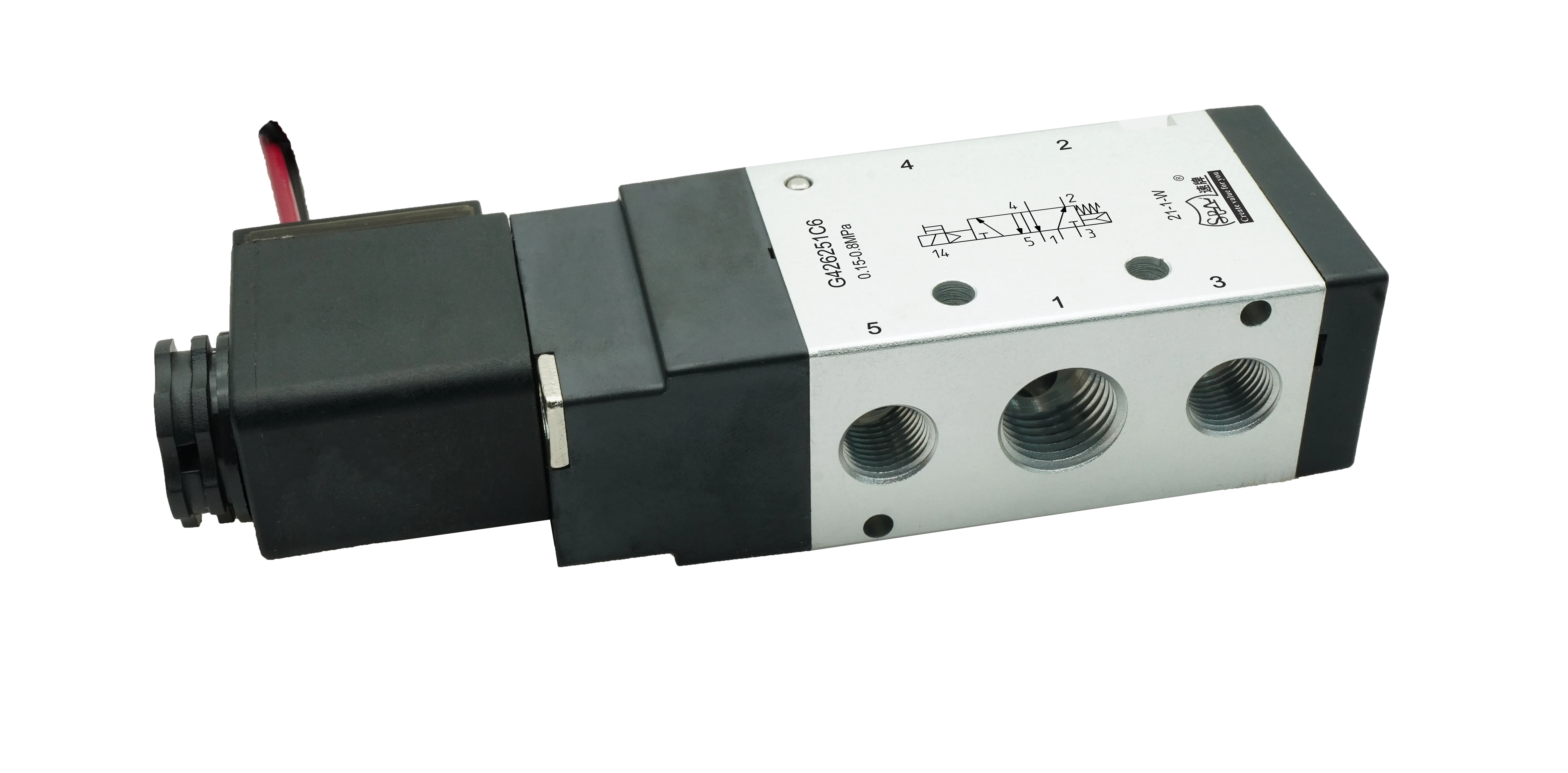

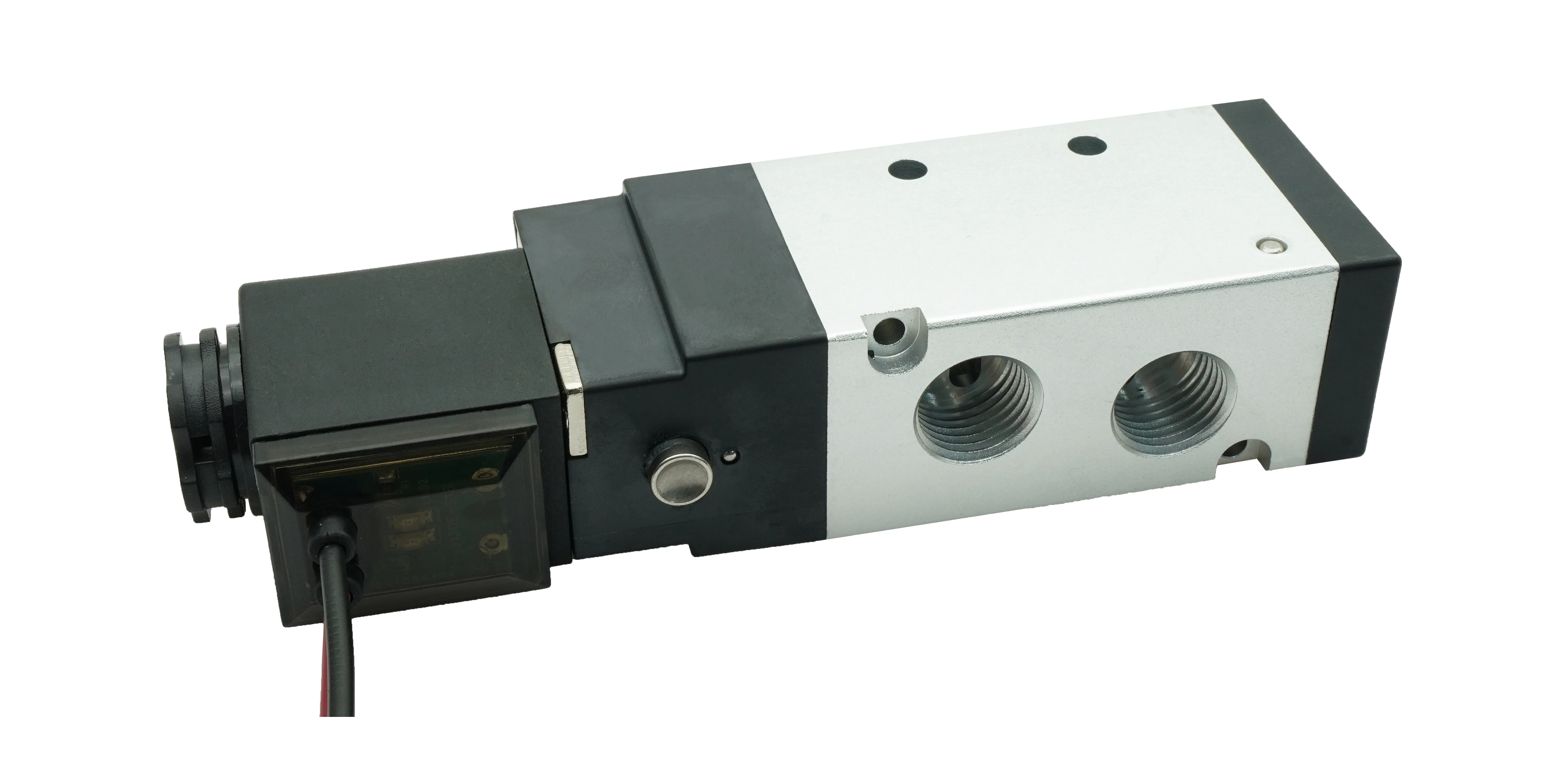

G4 High Temperature Series Solenoid Valve (2-position 5-way single solenoid valve)
Functional Highlights:
1. Uses H-class temperature-resistant enameled wire and high-temperature materials;
2. High magnetic force electromagnetic components, long-lasting stable performance;
3. Locking manual switch, manual operation available, safe and reliable;
4. Premium sealing with lubricating grease, friction-resistant, condensation-resistant, long service life;
5. Hybrid reset (air and spring), strong reset force, good stability;
Number of positions
Two-way five-way
Operating pressure range
Switching methods
Response time
Specification
Connection method
Voltage (optional)
Protection level
Using fluid
flow
Temperature range
Product Selection
High temperature resistant coil
It uses H-grade heat-resistant enameled wire and high-temperature resistant materials, making it suitable for high-temperature working conditions;
Temperature range: -20℃ to 120℃;
Stable performance and long lifespan;
High magnetic force electromagnetic components
Strong magnetic circuit design ensures long-term stable response time.
Low power consumption and high conversion rate, resulting in significant energy savings and reduced energy consumption.
Specially customized spring wire, suitable for high-frequency, high-load conditions.

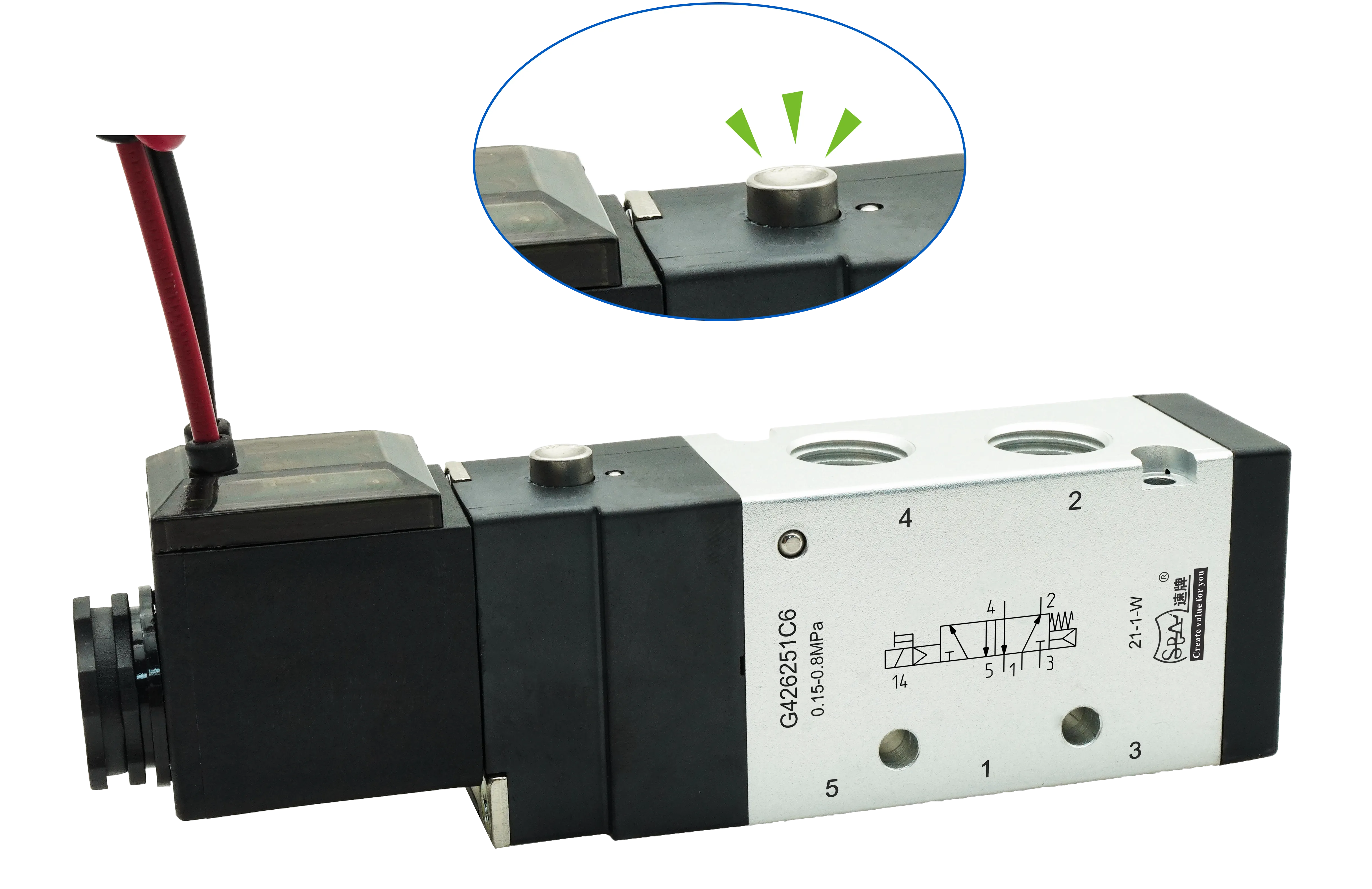

Locking manual switch
Strong safety protection, eliminating the possibility of misoperation.
Excellent operational controllability
High-quality sealant + grease
High-quality seal: water resistance, abrasion resistance, and resistance to compression set.
Grease: Low coefficient of friction, high load capacity, long-lasting lubrication
Hybrid reset (gas + spring)
Hybrid Reset
Hybrid reset design provides strong reset force and fast response speed.
Return spring
With a 20% compression ratio design, it offers stable performance and a long lifespan.
Good stability
Good stability and long service life
Quality Assurance
high pressure
power
Manual
Response time
Leakage
Frequent movements
low pressure
power
Manual
Response time
Leakage
Frequent movements
